1 Channel SDI QAM Modulator with IPTV

B-QAM-SDI-IP-1CH-LL

B-QAM-SDI-IP-1CH-LL series products are QuetTel's new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulating to convert signals into DVB-C/DVB-T/ATSC-T/ISDB-T RF output. It has equipped with 1 HD-SDI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP (2*SPTS) port.

  • MPEG2 HD & MPEG4 AVC H.264 HD video encoding
  • DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
  • Support DD AC3 (2.0/5.1/7.1) passthrough
  • Support AC3 Dialog Normalization
  • 1 SDI Channels In
  • 1*ASI in for re-mux; 1*RF in for RF mix
  • 1* DVB-C & 2 ATSC RF out in one device   ( DVB-C & ATSC modulation dynamic switching)
  • 2 separate ASI output to mirror MPTS or one carrier programs;
  • IP (2*SPTS & 1*MPTS) out
  • Support CC (Closed Caption) EIA608
  • Low Latency available 70 -120 ms
  • LCN (Logical Channel Number) support
  • Supports IPTV output in IGMP UDP, RTP/RTSP format for unicast or multicast
  • VCT (Virtual Channel Table) support
  • Excellent modulation quality
  • LCD display, Remote control and firmware
  • Web-based NMS management; Updates via web
  • All cables included in the box

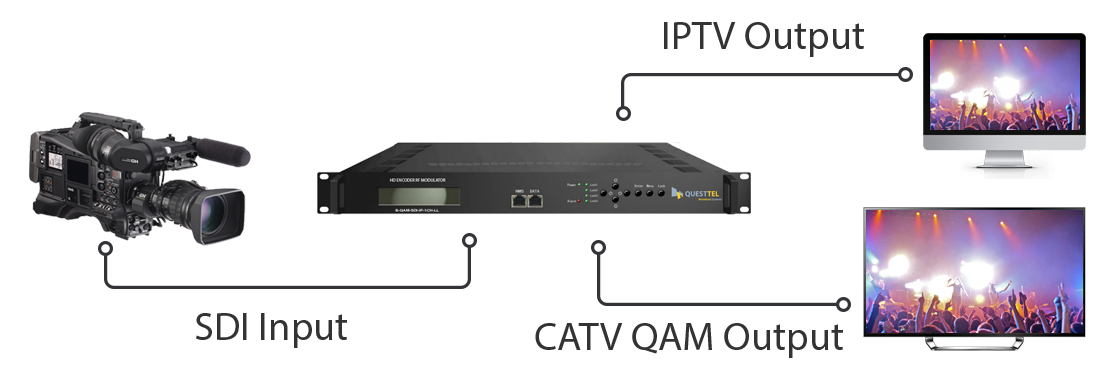

The B-QAM-SDI-IP-1CH-LL  series products are QuetTel’s new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulating to convert signals into DVB-C/DVB-T/ATSC-T/ISDB-T RF output. It has equipped with 1 HD-SDI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP (2*SPTS) port. It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (SDI/HDMI) as needed. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs or STBs and etc. With its various inputs available, our B-QAM-SDI-IP-1CH-LL series products are wildly used in public places such as the metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.

Encoding Section
Video Encoding MPEG2; MPEG4 AVC/H.264
Interface x1 SDI(BNC)
Resolution SDI: 1920*1080_60p, 1920*1080_50p (For MPEG 4 AVC/H.264 only),
1920*1080_60i, 1920*1080_50i,
1280*720_60p, 1280*720_50p
720*576_50i, 720*480_60i
Low Delay Normal, Mode 1, Mode 2
Audio Encoding MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0)
Sample rate 48KHz
Bit rate 64/96/128/192/256/320kbps
RF Section
MER ≥42dB
RF frequency 30~960MHz, 1KHz step
RF output level -30~ -10dbm (77~97 dbµV), 0.1db step
DVB-C Modulator Section
Standard J.83A(DVB-C) J.83B J.83C
Constellation 16/32/64/128/ 256 QAM 64/ 256 QAM 64/ 256 QAM
Bandwidth 8M 6M 6M
RF Out 2*DVB-C adjacent carriers combined output
Symbol rate 5.000~9.000Msps adjustable
ATSC Modulator Section
Standard ATSC A/53
Constellation 8 VSB
RF Out 2*ATSC adjacent carriers combined output
System
Local interface LCD + control buttons
Remote management Web NMS
Stream Out 2 x ASI out (BNC type, 100M);

2 x IP SPTS out (RJ45, 100M)

NMS interface RJ45, 100M
General
Power supply AC 100V~240V
Dimensions 420*400*44mm
Weight 4.5 kg
Operation  temperature 0~45℃
